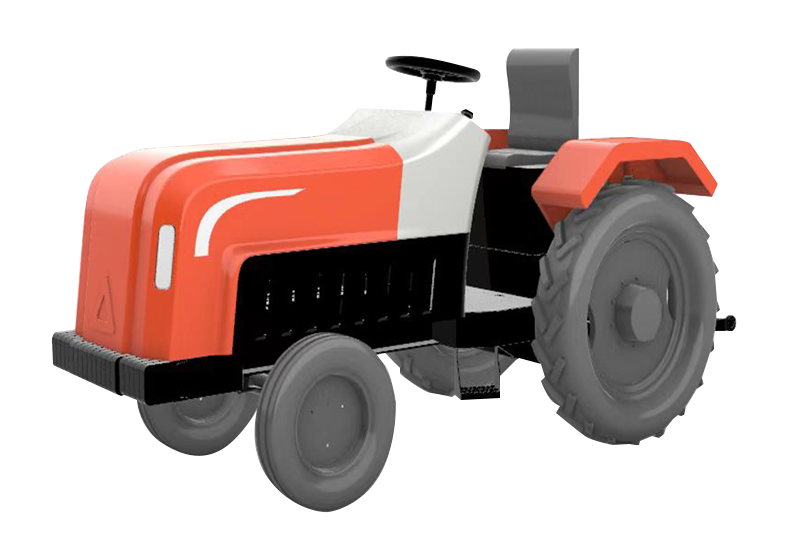

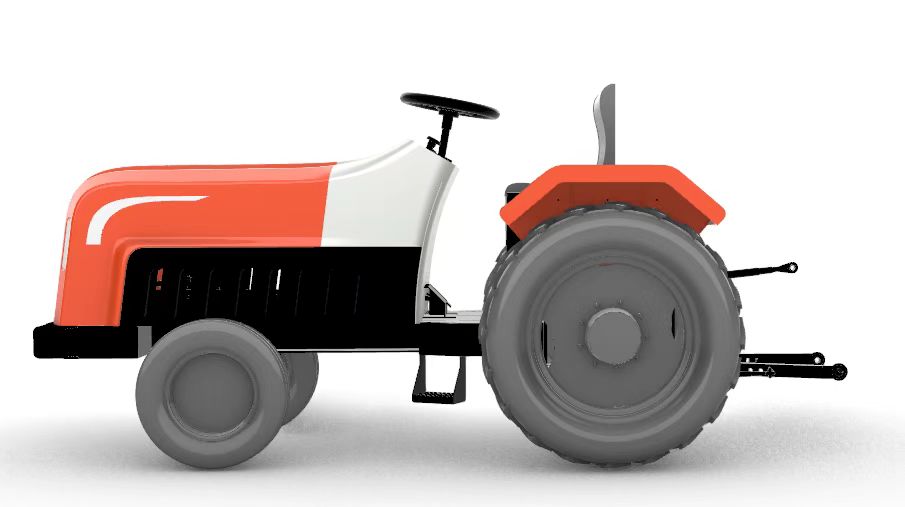

電動拖拉機
產品名稱:電動拖拉機
更新時間:2022-10-22 11:59:33
易疆電動拖拉機主要特點
Main Features of Easyland Electric Tractor
● 采用雙輪邊電機驅動,動力儲備充足,電機運轉高效;
● Adopting double wheelside motor drive, with sufficient power reserve and efficient motor operation.
● 中央集中式電控系統,控制響應迅速,整車成本降低;
● Centralized electronic control system with rapid control response and lower overall vehicle cost.
● 大容量鉛酸動力電池組,安全可靠,維護成本低;
● Large-capacity lead-acid power packs, safe and reliable, with low maintenance costs.
● 智能主動轉矩分配算法,提高作業效率;
● Intelligent active torque distribution algorithms to improve operational efficiency.
● 整車小型化設計,線控轉向,機動靈活;
● Miniature design of the whole vehicle, steering by wire, mobility and flexibility.
● 人機工學布局,駕駛舒適,操縱高效;
● Ergonomic layout, driving comfort and efficient handling.
● 直驅式電液懸掛,保證作業質量;
● Direct-drive electro-hydraulic hanging to ensure quality of operation.
● 專業美學設計,造型簡潔時尚;
● Professional aesthetic design, simple and fashionable shape.
● 高強度焊接式車架,結構緊湊,性能可靠;
● High-strength welded frame with compact structure and reliable performance.
● 校企研發團隊,刻苦攻關,匠心獨運。
● University-enterprise R & D team, hard work, unique design.
參數表
Specifications
1 | 動力裝置 Power plant | 雙電機 Dual motors |
2 | 技術路線 Technical route | 輪邊驅動 Wheelside motor drive |
3 | 額定功率 Rated power | 20 馬力 20 hp |
4 | 主要換擋方式 Main gear shifting methods | 電機無級調速 Motor stepless speed control |
5 | 作業速度 Operating speed | 田間作業:2-8 km/h 道路運輸:8-20 km/h Field operation: 2-8 km/h Road transport: 8-20 km/h |
6 | 軸距 Wheel base | 1450 mm |
7 | 前輪輪距 Front wheel tread | 910 mm |
8 | 后輪輪距 Rear wheel tread | 1100 mm |
9 | 外形尺寸(長*寬*高) Boundary dimension (length*width*height) | 2500*1300*1320 mm |
10 | 最小離地間隙 Minimum ground clearance | 300 mm |
11 | 額定牽引力 Rated traction Force | 4000 N |
12 | 轉向形式 steering system | 線控轉向 |
13 | 輪胎規格 wheel specification | 前輪:4.0-12 后輪:7.5-20 Front wheel:4.0-12 Rear wheel:7.5-20 |
14 | 懸掛方式 Hanging method | 液壓驅動、三點式 Hydraulic drive, Three-Point Type |
